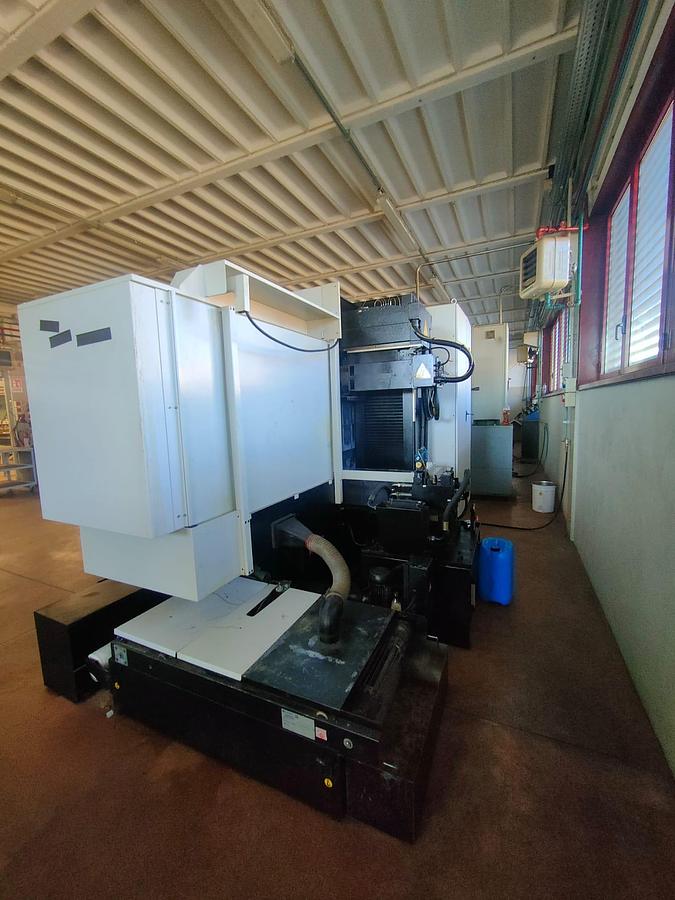

2000 HORIZONTAL GRINDING MACHINE FAVARETTO model MB75

LIQUIDATION OF FOMAR-STAMP SRL MACHINES IN READY-TO-DELIVER CONDITION VISIBLE AND OPERATING AT FOMAR-STAMP SRL IN MESENZANA (VA)

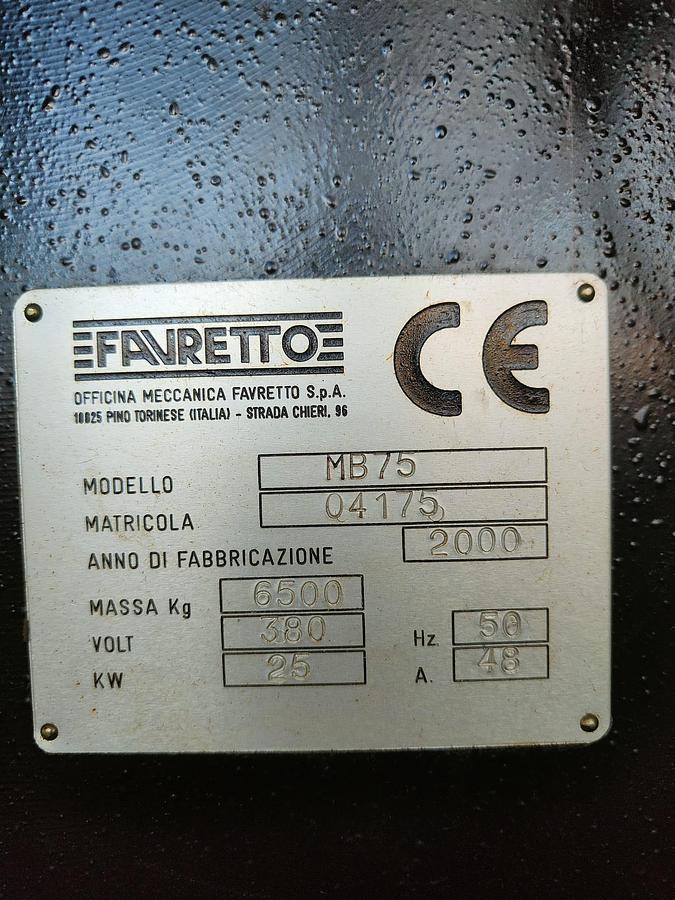

YEAR 2000
N/S 04175
WORK CAPACITY:
Max grindable length:
mm 750
Max grindable width:
mm 500
Max grindable height:
mm 550
HEAD TOOLING:
Power:
kW 9
Grinding wheel size (diameter x bore x width):
mm 400 x 127 x 50
Rotation speed:
rev/min 1,400
TABLE LONGITUDINAL AXIS:
Speed:
m/min 2 ÷ 40
Maximum load without magnetic table:
kg 700
Maximum load with magnetic table:
kg 530

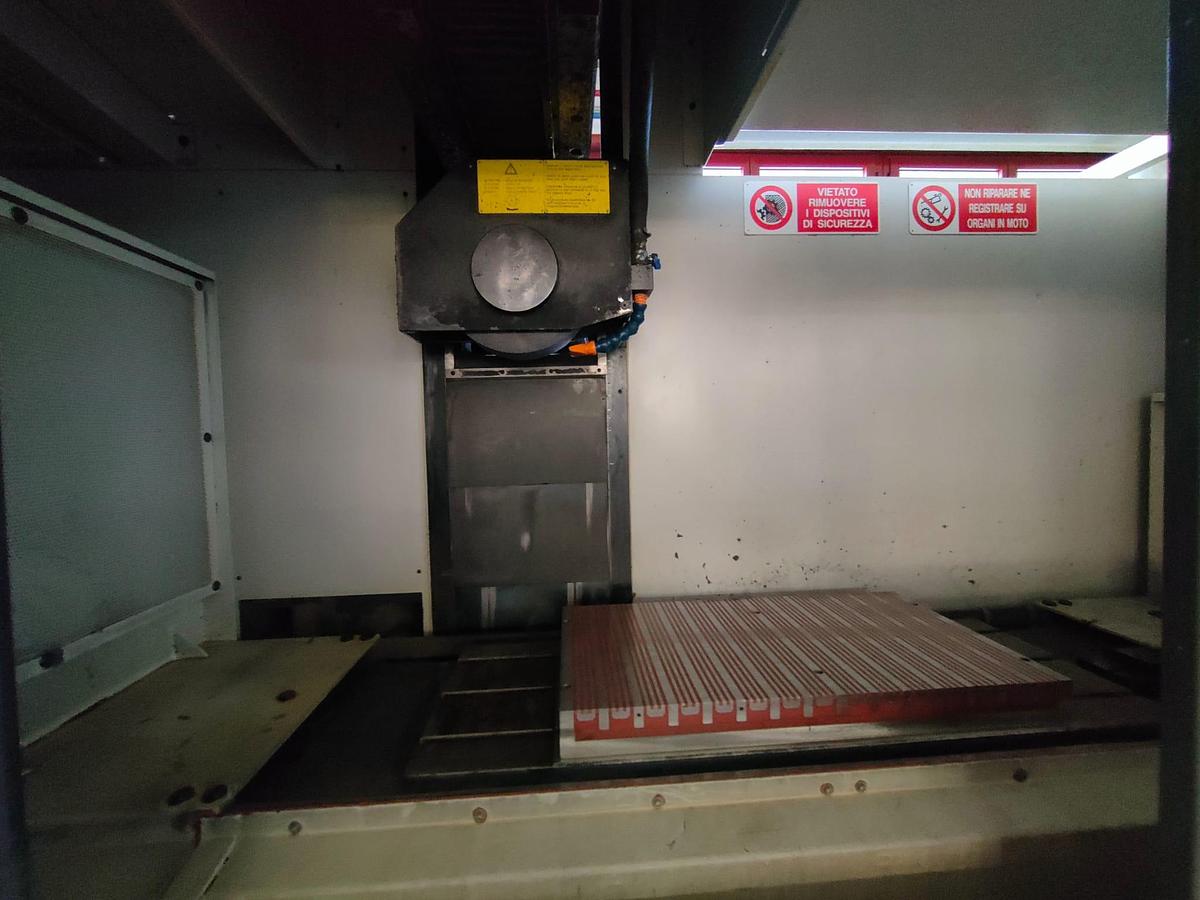

Ground plate size:
mm 750 x 400
Stroke available:
mm 750
Total stroke:
mm 870
CROSSWAY AXIS HEAD:
Quick speed:
m/min 5
Indexed feed:
mm 1 ÷ 50
Continuous adjustable feed:
mm 0 ÷ 2,000
Minimum work increments:
mm 0.001
Stroke available:
mm 450
Total stroke:
mm 485
VERTICAL AXIS HEAD:
Quick speed:
m/min 1.5
Minimum work increments:
mm 0.001
Stroke available:
mm 610
Total stroke:
mm 645
DIMENSIONS:
Length:
mm 3,950
Width:
mm 2,935
Height:
mm 2,540
Machine weight:
kg 6,500
Machine complete with:
Instruction manuals and CE declaration
NON-BINDING DATA TO BE VERIFIED
