2022 DOOSAN VERTICAL CENTER mod.DNM5700
2022 DOOSAN VERTICAL CENTER mod.DNM5700
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
NONCOMMITTAL DATA TO BE VERIFIED
Specifications
| Year | 2022 |
| Condition | Used |
| Serial Number | MV0091-004250 |
| Stock Number | CV0107 |
| X axis travel | 1050 mm |
| Y axis travel | 570 mm |
| Z axis travel | 510 mm |
| Distance from spindle nose to table surface | 150-660 mm |
| Rapid advances x-y-z | 36 – 36 – 30 m/min |
| Spindle | 12000rpm; 10 – 17 kW; ISO 40 – DIN |

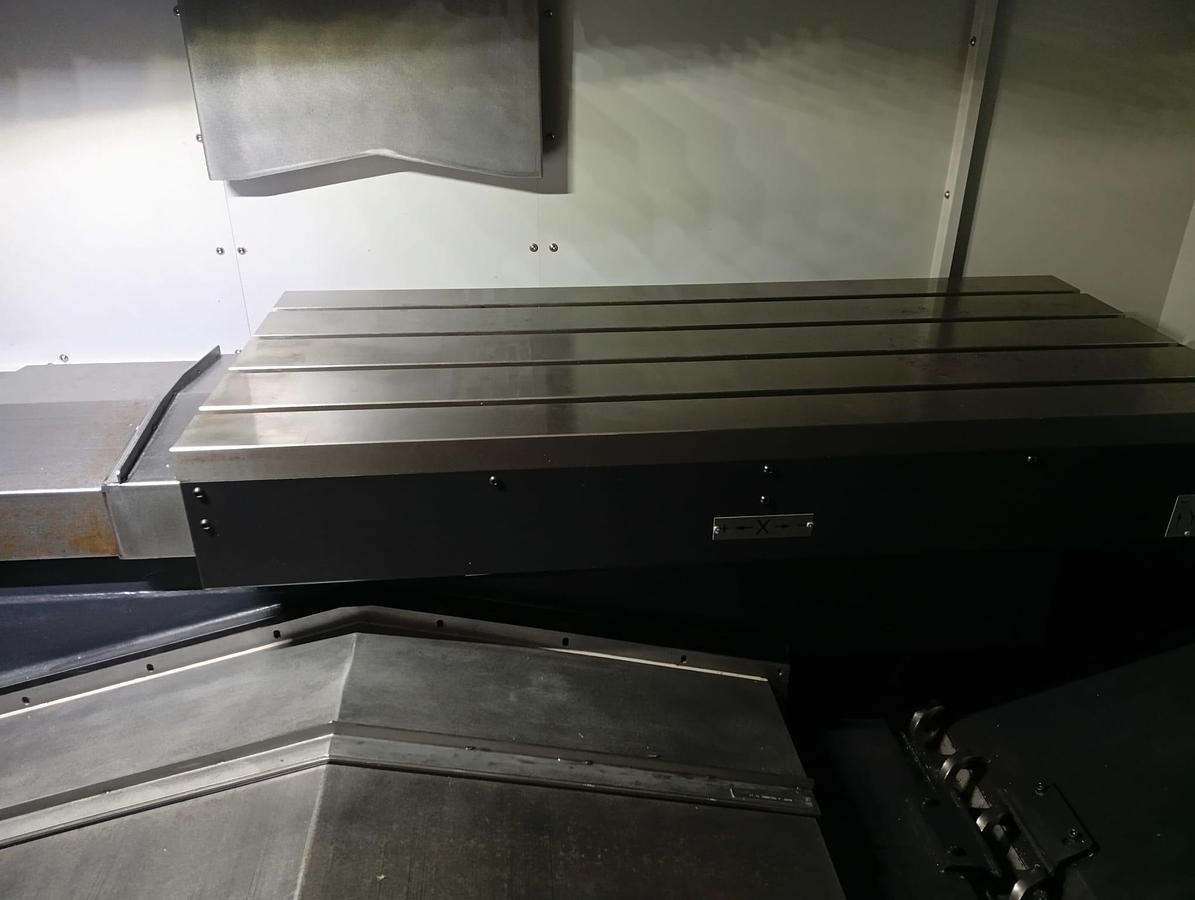

| Table size | 1300 x 570 mm |
| Maximum permitted load | 1000 Kg |
| Tool warehouse | 30 POS |
| Max tool diameter | 80 (125) mm |
| Max tool length | 300 mm |
| Max tool weight | 8 Kg |

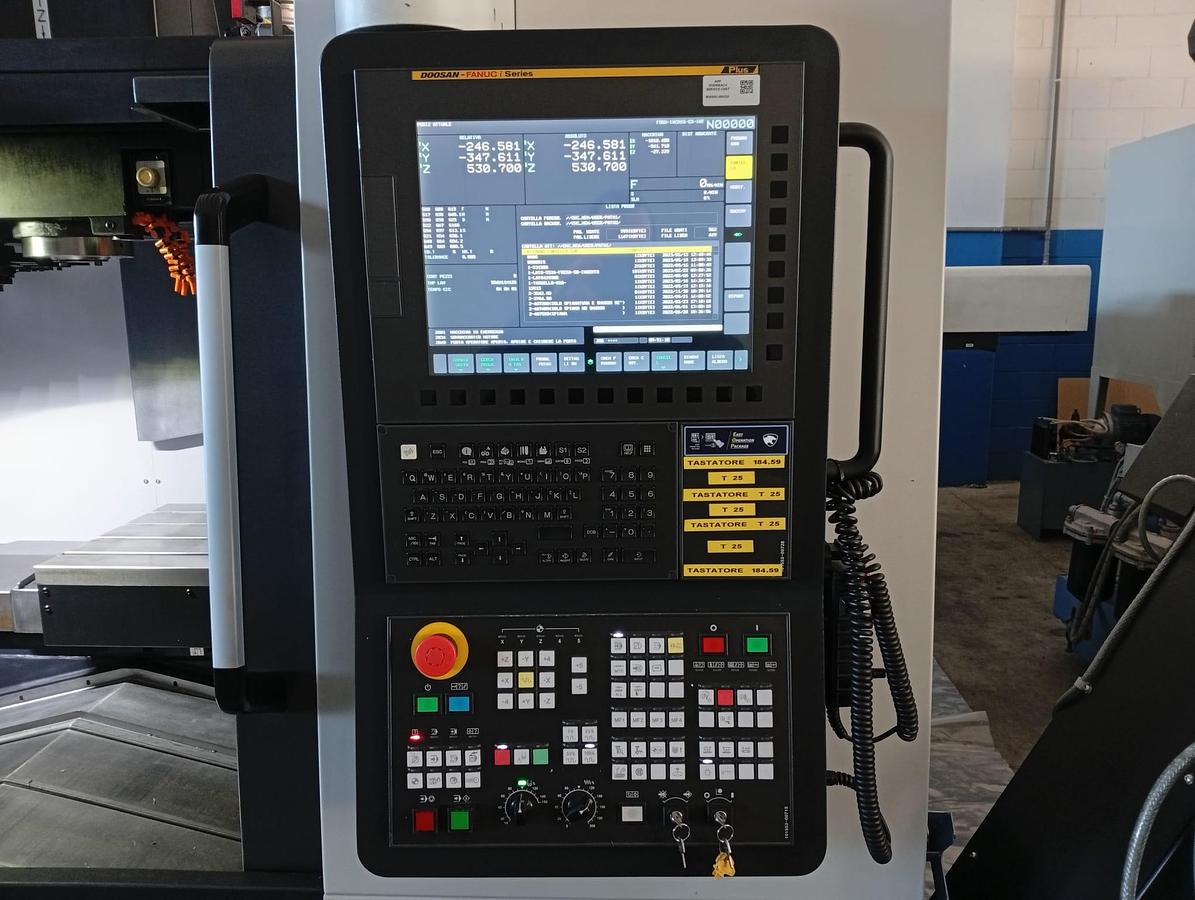

| Check | FANUC |
| Weight | 6500 Kg |

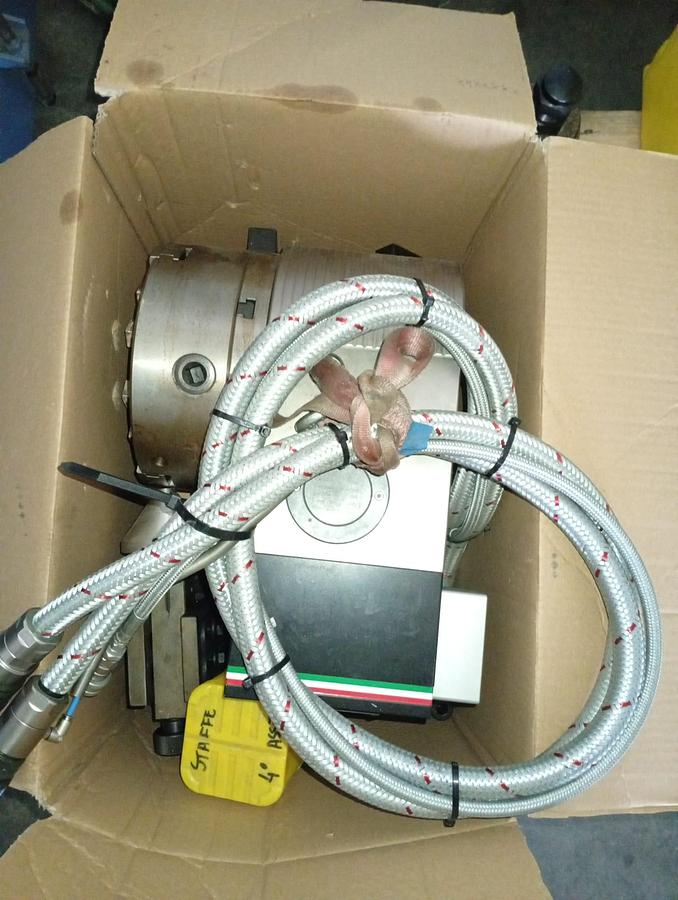

| Used machine complete with 4 axis and coolant in the center of the spindle. | 3110 x 2413 x 2985 mm |
