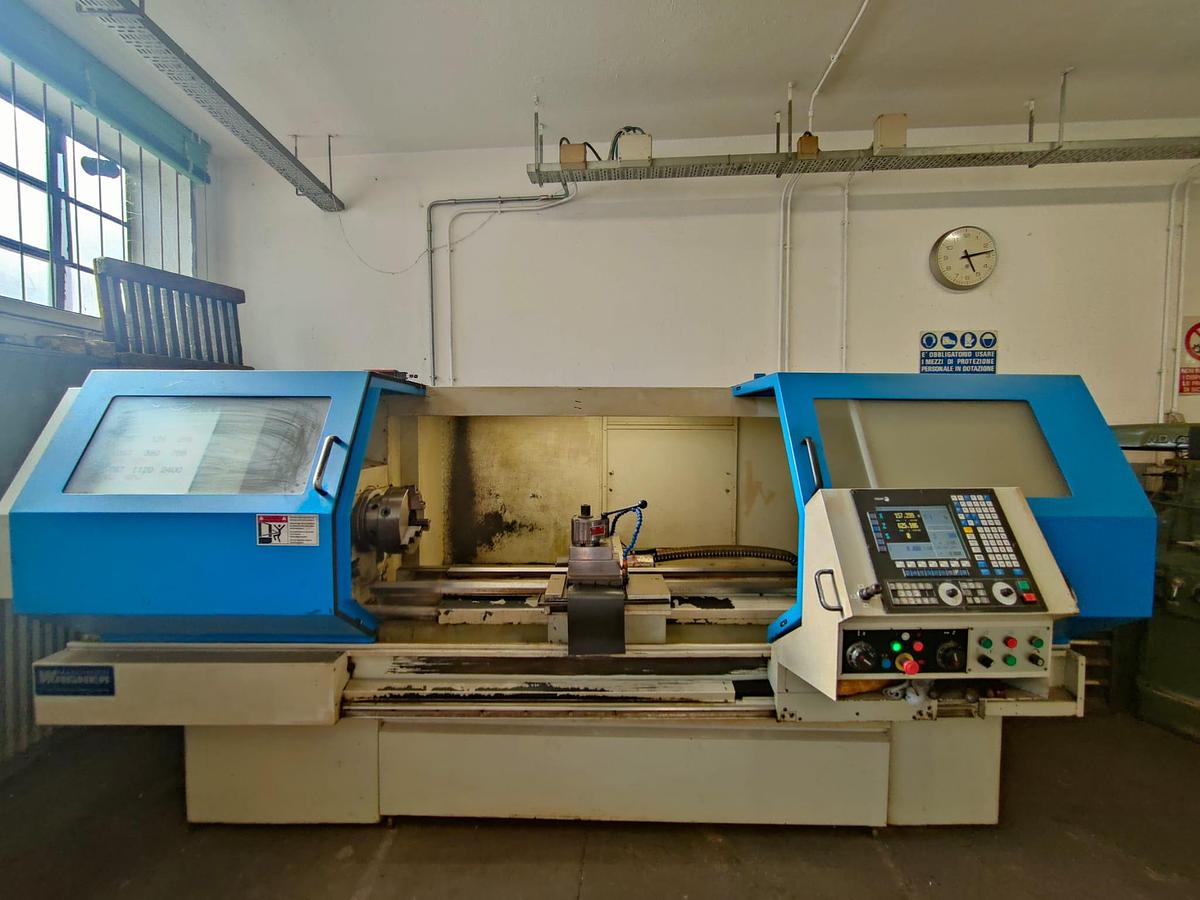

2011 WAGNER TORNIO mod. WDC 510

YEAR 2011
MATRICOLA 0714
FAGOR 85 CONTROL
MULTIFIX MANUAL TURRET
CAPACITY:
Max. executable diameter on pallet mm 510
Max. turning diameter on cross slide mm 340
Diameter that can be turned in the recess mm 760
Distance between centers mm 2000
SPINDLE HEAD:
D1-8 spindle nose
Spindle bore mm 80
Spindle speed low rpm 26-266
Spindle speed high 267-766
Spindle speed medium 767-2400
Spindle nose lock MT7xMT5
COUNTERPOINT:
Nosepiece stroke mm 200
Sleeve diameter mm 75
MT5 sleeve taper
BANK:
Width mm 345
Max. longitudinal stroke mm 1700
Max. length of rotation mm 1650
GENERAL:
Length mm 4710
Width mm 2100
Height mm 2230
Gross weight kg 3000
Net weight kg 3600
NON-BINDING DATA TO BE VERIFIED
